Description

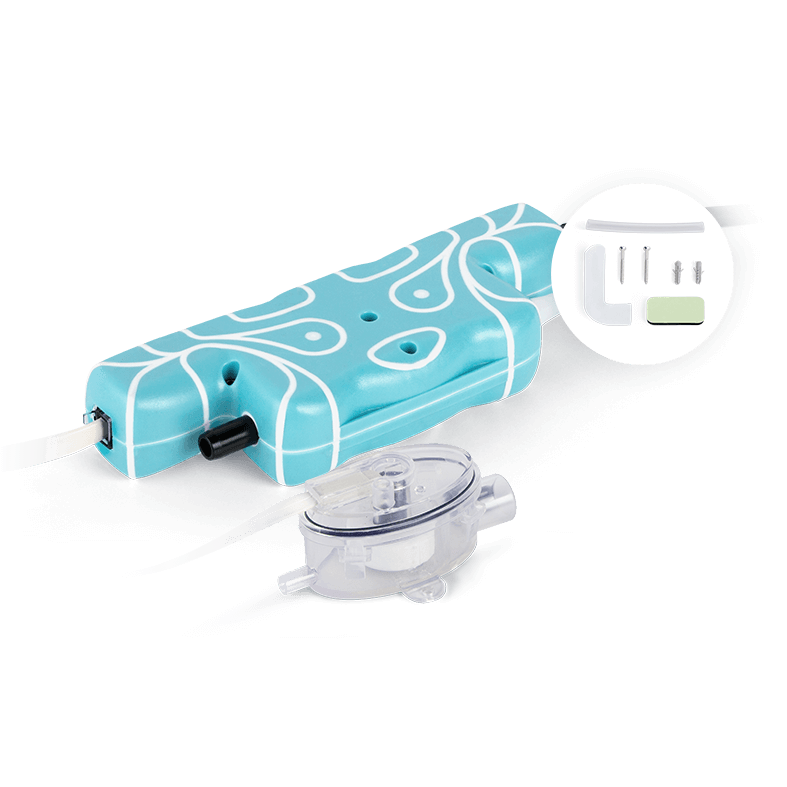

TATTOO 5 condensate pump
For air conditioners up to 12000 BTU
The most silent condensate pump system on the market (tested by the LNE laboratories in Paris). Rich in accessories – multi-position mounting plate, sleeve for direct connection of the float to the condensate drain pan, check valve built into the pump. Made in Switzerland.
Advantages
- Extremely silent pump
- Overflow alarm contact
- Easy maintenance: the cover acts as a tank
Performance
Technical Data
| Max. Flow | 5 L/h (1.3 gal/h) |
| Dry suction max. | 1 m (3′ 3″) |
| Wet suction max. | 2 m (6′ 7″) |
| Max. pressure (see curve) | 8 m (26′ 3″) |
| Alarm contact | NO/NC 8A 230V |
|
Dimensions:
pump unit
Detector
|
150mm × 54mm × 28mm (5-7/8″ × 2-1/8″ × 1-1/8″)
82mm × 39mm × 39mm (3-1/4″ × 1-1/2″ × 1-1/2″)
|
| 6-wires (alarm + voltage) with cable strain relief | |
